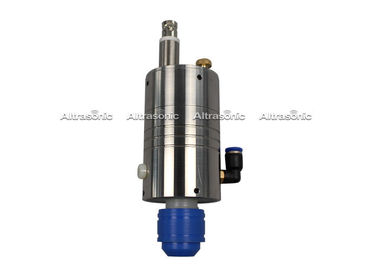

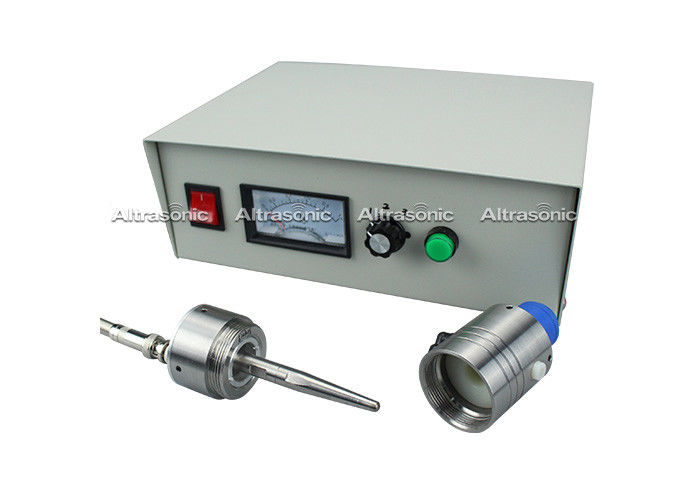

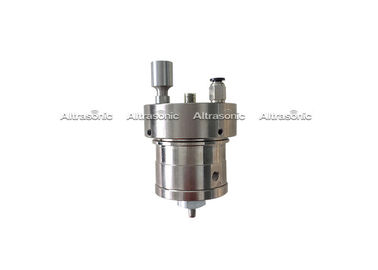

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller
DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller

Large Image :  DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-N50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs/year

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller

Description
Frequency: 50kHz Power: 30Watt
Average Particle Diameter Of Fog: 28um Atomization Head Structure:: Cylindrical
Atomization Speed: 0~5L/h Power Consumption: 0.01 Degrees/Kg
High Light:

ultrasonic nozzle spray

,

ultrasonic nebulizer machine



50Khz Ultrasonic Spray Nozzles with Power Controller for DIY Spray Pyrolysis





Introduction:



Altrasonic PicoMist nozzle is perfectly suited for spraying fine lines of material in repeatable, controllable spray processes. The ultra thin, uniform lines achieved with the PicoMist nozzle are used to spray Clearweld in laser welding processes, microfluidic device channels, sensors, and any other application requiring extremely thin lines of material.





Principle:



Ultrasonic spray nozzles are constructed to vibrate longitudinally at high frequency by means of piezoelectric transducers. This longitudinal up and down motion creates standing waves in a thin film of applied liquid on the ultrasonic nozzle tip, in which the amplitude of these waves can be controlled by the power generator. These standing liquid waves can be extended upwards off the ultrasonic nozzle tip to the point they separate into evenly sized droplets with little to no kinetic energy. Secondary shaping gas or ambient air can be used to easily entrain droplets to the desired shape and velocity if needed. A variety of ultrasonic nozzles are offered that help determine droplet size, liquid flow rate and spray patterns.





Applications:



  • Increase of humidity level
  • Coating non-woven fabric, paper, etc…
  • Laboratory spray drying
  • Injection moisture into a gas stream
  • Applying minute amount of oil, fragrance or flavour onto a product
  • Injecting small volume of reagents into a reactor





Ultrasonic nozzle benefits:



· Reduce material consumption

· Non wasteful over spray

· Very low flow rate capabilities, inter-mitten or continuous

· Non clogging

· Corrosion resistant

· High precise and highly controllable

· Low cost spray nozzle replacement



DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller 0

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller 1

Workshop:

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller 2



CE Certification:

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller 3



Packing&Shipping:



Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller 4





Payment:



DIY Spray Pyrolysis 50Khz Ultrasonic Spray Nozzles With Power Controller 5



General FAQs:



Q: Are You Trading Company Or Manufacturer?

A: We are a factory with our own international business department,.Also welcome customer visit our company for experiment.



Q: How about OEM?

A: We provide OEM service ,and if you want printing your own logo on inner box , just send us your logo style ,and the we will give you the quotation.



Q:How do you control production quality?

A: 3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
