Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating

China Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating supplier
Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating supplier Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating supplier Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating supplier

Large Image :  Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-N50

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs/year
Contact Now
Detailed Product Description
Frequency: 50kHz Power: 30Watt
Average Particle Diameter Of Fog: 28um Atomization Head Structure:: Cylindrical
Atomization Speed: 0~5L/h Power Consumption: 0.01 Degrees/Kg
High Light:

ultrasonic nozzle spray

,

ultrasonic nebulizer machine



Uniform droplet 50Khz Ultrasonic Antimicrobial Coating onto Food Products





Introduction:

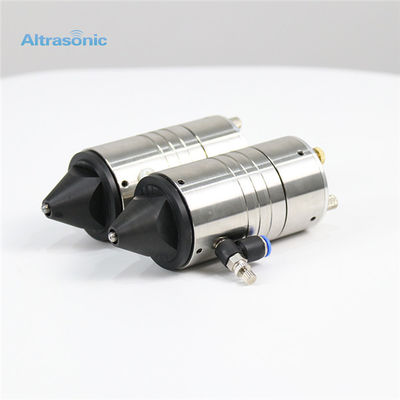

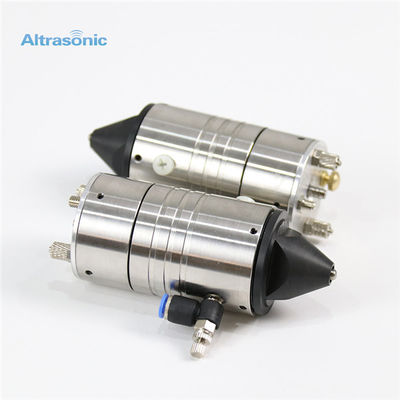

Altrasonic PicoMist nozzle is perfectly suited for spraying fine lines of material in repeatable, controllable spray processes. The ultra thin, uniform lines achieved with the PicoMist nozzle are used to spray Clearweld in laser welding processes, microfluidic device channels, sensors, and any other application requiring extremely thin lines of material.





Principle:

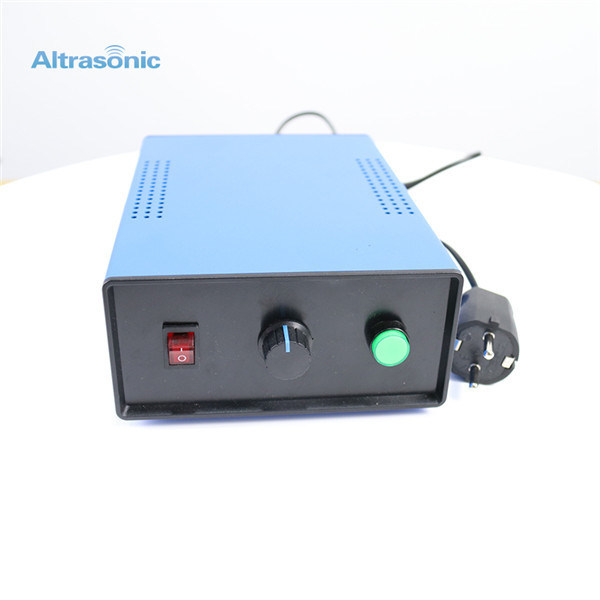

Ultrasonic spray nozzles are constructed to vibrate longitudinally at high frequency by means of piezoelectric transducers. This longitudinal up and down motion creates standing waves in a thin film of applied liquid on the ultrasonic nozzle tip, in which the amplitude of these waves can be controlled by the power generator. These standing liquid waves can be extended upwards off the ultrasonic nozzle tip to the point they separate into evenly sized droplets with little to no kinetic energy. Secondary shaping gas or ambient air can be used to easily entrain droplets to the desired shape and velocity if needed. A variety of ultrasonic nozzles are offered that help determine droplet size, liquid flow rate and spray patterns.





Specification:



Item No. HS-N50 HS-N30 HS-N15
Frequency 50kHz 30kHz 15kHz
Speed 3 L/H 70 L/H 150 L/H
Average Particle Diameter of Fog 28um 39um 62um
Power Consumption 0.01 Degrees/Kg 0.01 Degrees/Kg 0.001 Degrees/Kg
Power 30Watt 100Watt 500Watt





Applications:



  • Increase of humidity level
  • Coating non-woven fabric, paper, etc…
  • Laboratory spray drying
  • Injection moisture into a gas stream
  • Applying minute amount of oil, fragrance or flavour onto a product
  • Injecting small volume of reagents into a reactor





Ultrasonic nozzle benefits:



· Reduce material consumption

· Non wasteful over spray

· Very low flow rate capabilities, inter-mitten or continuous

· Non clogging

· Corrosion resistant

· High precise and highly controllable

· Low cost spray nozzle replacement



Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating 0

Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating 1

Workshop:

Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating 2



CE Certification:

Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating 3



Packing&Shipping:



Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.

Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating 4



Payment:



Uniform Droplet 50Khz Ultrasonic Nebulizer Altrasonic PicoMist Nozzle Antimicrobial Coating 5





General FAQs:



Q: Are You Trading Company Or Manufacturer?

A: We are a factory with our own international business department,.Also welcome customer visit our company for experiment.



Q: How about OEM?

A: We provide OEM service ,and if you want printing your own logo on inner box , just send us your logo style ,and the we will give you the quotation.



Q: How do you control production quality?

A: 3 times old test to confirm the products is well quality.

20 technician work together , and learn together , to improve our products.

48 hours working time to test the stability of our product before sending out.
