|Average Particle Diameter Of Fog:||28um||Atomization Head Structure::||Cylindrical|
ultrasonic nozzle spray,
ultrasonic nebulizer machine

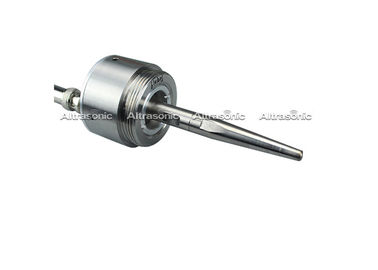

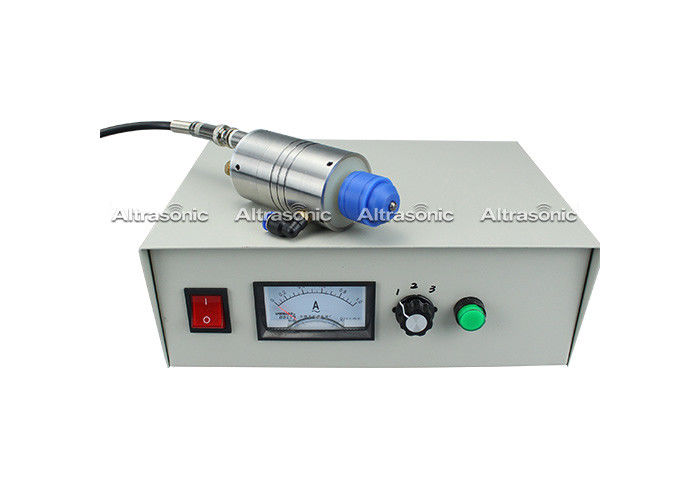

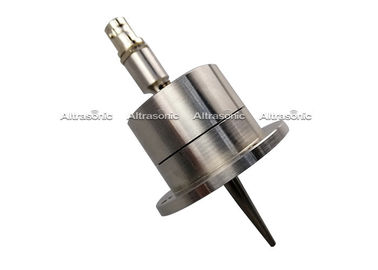

China 50khz Energy Saving Low-E Glass Ultrasonic Coating Nozzle With Power Controller
Ultrasonic spray (FOG)is to use the energy of ultrasonic water or liquid scattered,forming several microns to 100 microns in size of particles,used for air humidifying,granulating,mixing liquid,promote chemical reaction,spraying,molten metal powder etc.
Ultrasonic spray nozzles are constructed to vibrate longitudinally at high frequency by means of piezoelectric transducers. This longitudinal up and down motion creates standing waves in a thin film of applied liquid on the ultrasonic nozzle tip, in which the amplitude of these waves can be controlled by the power generator. These standing liquid waves can be extended upwards off the ultrasonic nozzle tip to the point they separate into evenly sized droplets with little to no kinetic energy. Secondary shaping gas or ambient air can be used to easily entrain droplets to the desired shape and velocity if needed. A variety of ultrasonic nozzles are offered that help determine droplet size, liquid flow rate and spray patterns.
* Blood Collection Tubes
* Medical Devices
* Hydrogen Fuel Cells
* Solar Cells Coatings
* Antimicrobial Coatings
* Float & Panel Glass
* Nano Technology
* Ultrasonic Spray Pyrolysis
* Bioaerosol Spray
Ultrasonic nozzle benefits:
* Spray patterns are easily shaped for precise coating applications
* Highly controllable spray produces reliable, consistent results
* Corrosion-resistant titanium and stainless steel construction
* Ultra-low flow rate capabilities, intermittent or continuous
* No moving parts to wear out
* Drops sizes as small as 13 microns, depending upon nozzle frequency
* Reduce downtime in critical manufacturing processes
Shipping Term:By express,by air,by ocean and so on.
Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.
Q: Are You Trading Company Or Manufacturer?
A: We are a factory with our own international business department,.Also welcome customer visit our company for experiment.
Q: Could you make it according to our special requirements?
A: Of course,we can do .Please tell us you idea or your application.
Q: How about OEM?
A: We provide OEM service ,and if you want printing your own logo on inner box , just send us your logo style ,and the we will give you the quotation.
Q: How do you control production quality?
A: 3 times old test to confirm the products is well quality.
20 technician work together , and learn together , to improve our products.
48 hours working time to test the stability of our product before sending out.
