Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing

China Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier
Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing supplier

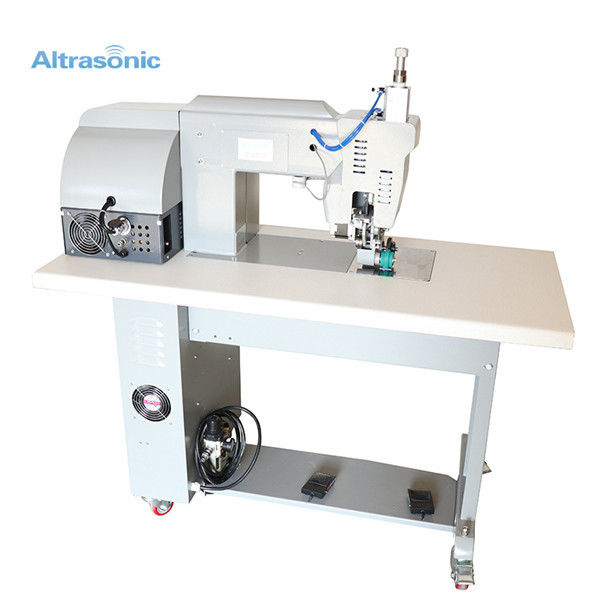

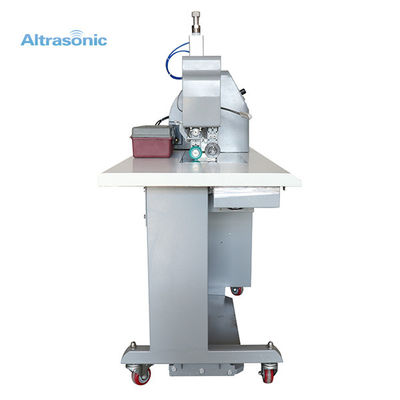

Large Image :  Roller Sewing Ultrasonic Cutting Machine for Natural Feather Processing

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSF57B-CB

Payment & Shipping Terms:

Minimum Order Quantity: one piece
Packaging Details: carton
Delivery Time: 7 workdays after receiving the full payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Frequency: 35 KHz Model: HSF57B-CB
Power: 800 W Rotary Welding Horns Width: 12 Mm
Power Adjust Method: File Or Continuous

Ultrasonic Roller Sewing and Cutting Machine for Natural Feather Processing







Description:



The work method of Seamless sewing part is completely imitating traditional sewing machine. The biggest characteristic is the ultrasonic transmit horn work direction is same with the sewed cloth. Which will make the sewed point of the cloth are even, flat and fastness. Through suitable design, it can reach perfect sewing effectiveness.







Specifications:



Model HSF57B-CB
Frequency 35 KHz
Power 800 W
Rotary Welding Horns Width 12 mm
Power Adjust Method File or Continuous
The Horns Surface Hardness More than HRC56
Real-time Display Working Frequency and Working Current
Synchronizing Wheel Specifications 46XL Trapezoidal Tooth,Width16mm
Synchronizing Belt Matched The Length is not more than730mm,the Width 12mm
Allowable Rotation Speed 100 r/min.
Install Bolt M8, 4 pcs







Application:



Apply to lace clothing, ribbon,trim,Filter, Lacing and quilting,decoration products, handkerchief, tablecloth, curtain, bedspread, pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask, non-woven fabric bags and so on.







Principle:



With ultrasonic sealing and cutting, the heat required for melting is only generated inside the thermoplastic sealing layer. For localized conversion of vibrations to friction heat, the anvil or sonotrode profiles are mostly linear. These profiles ensure focusing of the energy input and therefore short sealing times between 100 and 200 milliseconds. With ultrasonic sealing heat is generated at the inside of the film, not by heat input from the outside as is the case with heat sealing, for example. The tools (sonotrode and anvil) that come into direct contact with the packaging material, remain cold during the entire weld process. The support layer remains almost cold and upon termination of energy input, the heat dissipates faster to the outside due to the temperature difference between the support layer and the sealing layer so that the hot-tack resistance is significantly higher.



Ultrasonic lace sewing machine used ultrasonic vibration and steel moulds, the above processing will be finished together with pressure.







Function:



Raw material - Bag mouth fold - thermal bonding - side fold - bottom sealing - loop handle fix - thermal bonding - edge cut - bag cut - collection







Advantages of Ultrasonic Cutting Materials



1. Cutting precision is high, rubber is not deformed;

2. Cutting surface finish is good, good bonding performance;

3. Easy to use in automated production;

4. Fast, high efficiency, no pollution;







Packing&Shipping



Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.







WHY CHOOSE ALTRASONIC ?



Innovation.

Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.



Half the price, double the value.

Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.



Good components.

Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.



Individual Customize.

We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications



Considerate sale service and after sale service

The flexible and proactive service is always client’s-centered and deadline driven. Any question and problems will be replied within 24 hours. You have our word. We have more considerate service. Welcome to contact us





Ultrasonic Roller Sewing and Cutting Machine for Natural Feather Processing

Roller Sewing Ultrasonic Cutting Machine for Natural Feather ProcessingRoller Sewing Ultrasonic Cutting Machine for Natural Feather Processing
