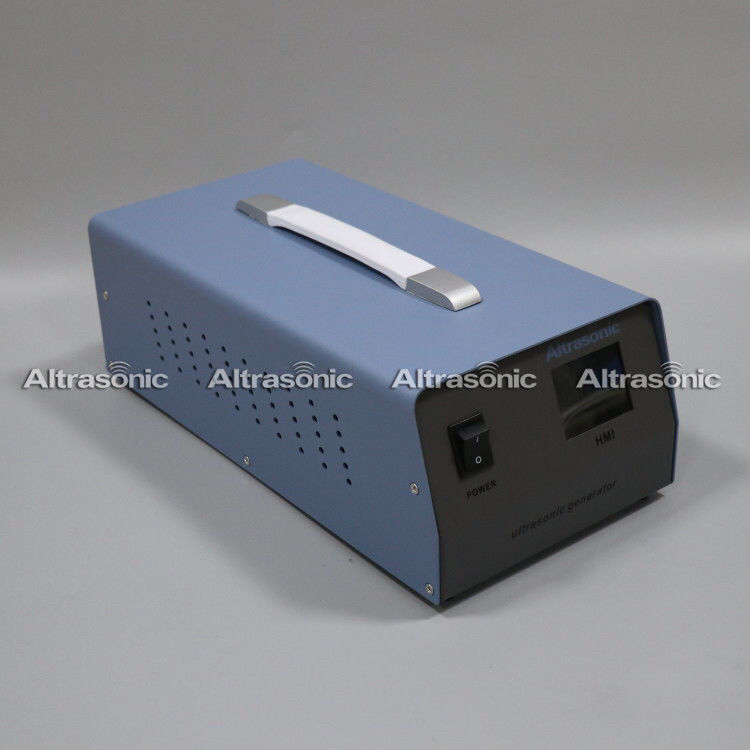

60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder

China 60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder supplier
60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder supplier 60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder supplier 60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder supplier 60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder supplier 60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder supplier

Large Image :  60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSD60S

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in wooden carton, and PE form inside
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Digital Generator Output Power: 500w
Working Type: Continue Or Pulse Optional Net Weight: 12 Kg
Frequency: 60Khz Voltage: 220V/110V 50/60Hz
Size: 530*240*240 Mm Mode: Digital

Frequency 60Khz 500w Ultrasonic Digital Generator for Riveting Welder with LCD Screen



Description:



China's first intelligent ultrasonic frequency automatic tracking series DSP HS-V-8.0 is one of the masterpieces from Hangzhou Altrasonic Technology Co., Ltd. in 2017. It is the leading brand of intelligent ultrasound in China. It uses high-performance microprocessor anti-interference to realize of electronic control, and all welding control parameters are managed by the microcomputer. Intelligent frequency control system, eliminating the inconvenience of manual FM, Sonic overload automatic detection,Tracking real-optimal resonance point,Vibration set temperature remains the lowest point, Frequency welding head temperature changes followed, The machine automatically adjusts to run more stable.



Ultrasonic Welding Principle:


When ultrasonic effects on the contact area of thermoplastic plastic, it will produce tens of thousands times per second high-frequency vibration. This the high-frequency vibration achieves a certain amplitude, and passes the ultrasonic energy to the welding area through the welding pieces. Because of the large resistance at the interface of the two welding area, it will produce local high temperature. And also because of poor thermal conductivity of plastic, can not be distributed in time, gathered in the welding area, resulting in two plastic contact surface rapid melting, coupled with a certain pressure, to integrate into one. When the ultrasonic stops, let the pressure last for a few seconds to make it solidified, thus forming a solid molecular chain, to achieve the purpose of welding, welding strength can be close to the strength of raw materials. The quality of ultrasonic plastic welding depends on the amplitude of the transducer and the horn, the welding pressure and the welding time. The welding time and welding horn pressure can be adjusted. The amplitude depends on transducer and booster. The three factors of interaction have a suitable value, if the energy exceeds the appropriate value, the plastic melting amount will be large, easy to deformation of welding; if the energy is small, it is not easy to solder, the pressure can not be too much. This optimum pressure is the product of the length of the welded part and the edge of the optimum pressure per 1mm.



Specifications:



Model HSD60S
Frequency 60khz
Output power 500watt
Frequency tuning method continue or pulse optional
Size 530*240*240 mm
Input Voltage 220V/110V 50/60HZ
Net weight 7kgs
Temperature ≤300℃
Moisture ≤85%RH
Power adjustable 1%-99%
Applications For Embedding machine



Competitive Advantage:​

  • The use of high-quality electronic components assembly.
  • Advanced and reliable protection circuit makes the reliability is greatly improved.
  • FM and frequency automatic compensation, frequency of the digital display.
  • Frequency deviation, working current two meter indication and protection function.
  • According to the customer request interface plug.
  • Has the advantages of simple structure, easy to repair, cheap.

Comparison:



  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement





WHY CHOOSE ALTRASONIC ?



1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.

2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.

3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.

4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

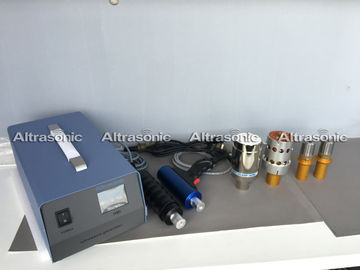

Frequency 60Khz 500w Ultrasonic Digital Generator for Riveting Welder with LCD Screen

60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder



60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder

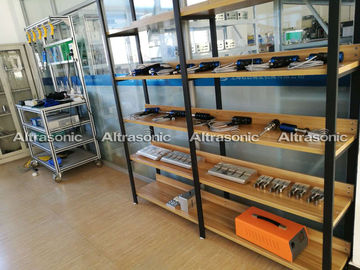

Workshop:

60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder

CE Certification:

60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder



Packing&Shipping:

Shipping Port:Shanghai

Shipping Term:By express,by air,by ocean and so on.

Leading Time:Quick production leading time and fast delivery.Usually 1-3days if we have in stock.



60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder



60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder



Payment:

60Khz 500w Ultrasonic Power Supply Ultrasonic Digital Generator For Riveting Welder
