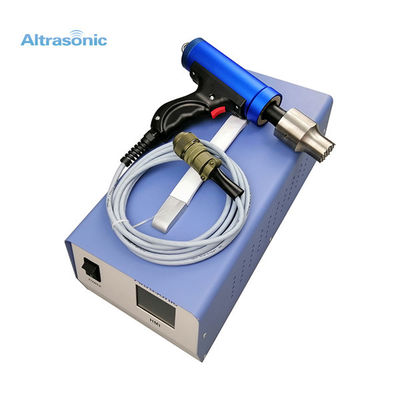

Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole

China Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole supplier
Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole supplier Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole supplier Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole supplier Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole supplier

Large Image :  Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GT30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Packaging Details: Carton packing
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Product Name: 30 Khz Portable Ultrasonic Welding Machine Frequency: 30Khz±1 KHz
Power: 1000W Frequency Tuning Method: Auto Tuning
Components: Ultrasonic Transducer, Welding Horn, Protective Sleeve And Digital Generator Welding Type: Hand Held Operation

Using for Joining Two Themoplastic Parts with No Pre-formed Hole by Ultrasonic





Specifications:



  Gun Type Cylinder Type
Model HS-35G HS-28G HS-28G HS-20G HS-35C HS-28C HS-28C HS-28C
Frequency 35k 28k 28k 20k 35k 28k 28k 28k
Power 700&1000 300&500 400&700 900 700&1000 300&500 400&700 500&800
Horn ≤10mm ≤10mm ≤12mm ≤13mm ≤10mm ≤8mm ≤12mm ≤12mm
Housing Diameter 51mm 64mm 40mm 40mm 45mm 60mm
Handle Size 100mm×45mm×32mm —— —— —— ——

Weight Without

Wire and Horn

0.6kg 1.3kg 1.3kg 1.5kg 0.6kg 0.6kg 0.6kg 1.3kg

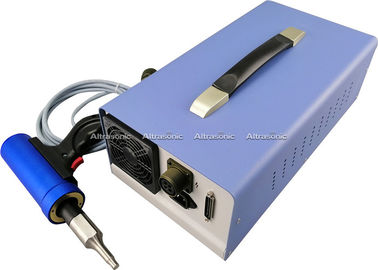

Digital generator
Analog generator

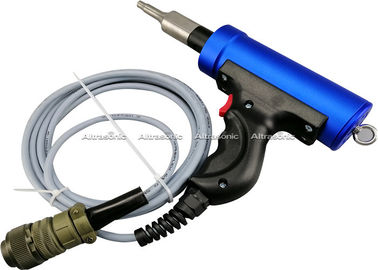

Gun type: in accordance with the shape design of human body engineering, ultrasonic start switch is located on the trigger, easy to grasp and use the welding operation, especially suitable for horizontal or vertical.

Cylinder type: for the appearance of design straight, ultrasonic start switch is located outside the cylinder, easy welding and hand carried, can also be installed between the on machine, welding operation for each direction.





Applications:



Electronic and electrical appliances, auto parts, clothing and packaging, textile industry, environmental industry, medical equipment,the toy industry, communications equipment and other industries.



Toy industry Plastic toys, water guns, aquatic life video game, children dolls, plastic gifts, etc
Electronic products

Recording, audio tape boxes and core wheel, disk enclosure, board of mobile

phone batteries and rectifier transformers, switches and sockets, remote control,

electronic swatter, pseudo-imitation caps, etc

Household appliances Electronic clock, electric trumpeter hairdryer, steam iron water tank, electric kettle air-hsiang, computer, etc

Stationery,

daily necessities

Stationery, aquarium ruler, the raphe folder and shell, pen stand, cosmetics box

shell,the end of the toothpaste tube seal, mirror, insulated cup, lighter, seasoning

bottles sealed container

Car, motorcycle

Battery, front corner lamp, rear tail light, instrument, reflectors, automotive manual

welding jacket, the car door welded baffle welding, automobile, car mats welding,

automotive bumper repair welding

The application

of the sports industry

Table tennis, table tennis bats, badminton rackets, tennis rackets, golf clubs, pool

table, treadmill roller rope skipping handle stepper, treadmill accessories, box

jumps,gymnastics mats, boxing gloves, boxing sandbag Sanda protective gear,

the path to indicate the brand, the X Display Stand and other sports

equipment, etc

The packaging industry Hollow crate welding, ziplock welded



Other Applications for Ultrasonic Welding

INSERTING
Threaded inserts, grub screws or other parts can be ultrasonically embedded in thermoplastics.

Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole



STAKING
Melting and forming of a plastic stud to retain or lock another material, often dissimilar, in place.

Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole



SPOT WELDING
Used for joining two thermoplastic parts with no pre-formed hole or energy director. This technique is particularly suited to large parts or parts with complicated geometry and thermoformed or blow-molded parts without a joint.



Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole

SWAGING
Used to capture another component of an assembly by melting and reforming a ridge of plastic around the component. The ridge locks the second component in place without welding the materials together.



Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole



Competitive Advantage:

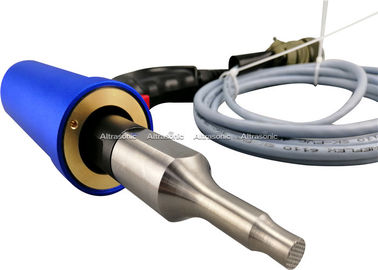

Rapid sonotrode exchange

High quality, heavy duty aluminum housing

High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

Timer-controlled air cooling as an option

Mobile – can be transported by handle on the generator case



Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole

Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed HoleHand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole

Hand Held Ultrasonic Spot Welding Machine for Joining Two Themoplastic Parts with No Pre-formed Hole
