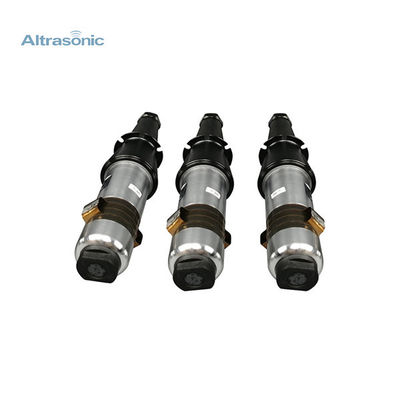

70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type

China 70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type supplier
70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type supplier 70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type supplier 70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type supplier

Large Image :  70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-7015-4Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Connect Screw: M20X1.5
Frequency: 15Khz Power: 2600W
Ceramic Diameter: 70mm Capacitance: 12.5-14nF
Type: Columnar Type Application: Welding
Qty Of Ceramic: 4 Pcs

70mm Diameter 15khz High Efficiency Piezoelectric Ultrasonic Welding Transducer Cylinder Type



Specifications:



Model HS-7015-4Z
Frequency 15Khz
Output power 2600W
Joint bolt M20*1.5
Ceramic disc Diameter 70 mm
Quantity of Ceramic discs 4 pcs
Capacitance 12.5~14nf
Amplitude 10um
Application Welding





Description:



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applications:



Ultrasonic Converters and Ultrasonic Transducers are one in the same. There is one Ultrasonic OEM, Dukane Corporation, that uses the term Transducer. All of the other ultrasonic OEM manufactures such as Branson, Sonics and Materials, Rinco, Telesonics and Herrmann refer to these as Converters or Konverters.

Converters or Transducers all do the same thing…convert electrical energy to mechanical movement…so we have our electrical charge being introduced across the surface of the ceramics at the desired frequency which in turn gives us a movement or vibration at the working end on the converter.

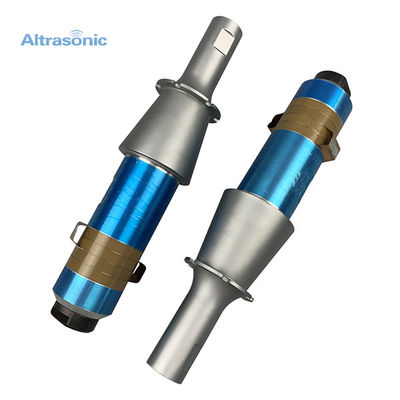

The converter is threaded onto a booster, which increases, decreases or just transfers the amount of movement from the face of the converter to the horn or Sonotrode as we call it.



Competitive Advantage:



1. Imported ceramic discs and superior aluminum raw materials.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

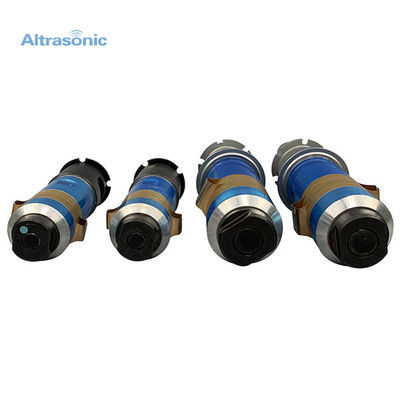

70mm Diameter 15khz High Efficiency Piezoelectric Ultrasonic Welding Transducer Cylinder Type



70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type70mm Diameter High Efficiency Piezoelectric 15khz Ultrasonic Transducer for Welding Cylinder Type
