50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying
50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying 50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying 50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying 50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying

Large Image :  50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-N50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton
Delivery Time: 7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs per year

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying

Description
Frequency: 50Khz Power: 30W
Atomization Volume: 2L/h Average Particle Diameter Of Fog: 28um
High Light:

ultrasonic nebuliser

,

ultrasonic nozzle spray

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying



Principle:



The Ultrasonic power supply converts 50/60 Hz to frequency electrical energy. This electrical energy is transmitted to the piezoelectric transducer within the converter, where it is changed to mechanical vibrations. The ultrasonic vibrations are intensified by the probe and focused at the tip where the atomization takes place. The liquid travels through the probe, and spreads out as a thin film on the atomizing surface. The oscillating tip disintegrates the liquid into micro-droplets, and ejects them to form a gentle, low velocity spray.



Specifications:



Model HS-N60 HS-N50A HS-N50B HS-N50C HS-N40 HS-N30 HS-N20 HS-N15
Frequency 60KHz 50KHz 50KHz 50KHz 40KHz 30KHz 20 KHz 15 KHz
Atomization Volume 0.5L/H 2 L/H 2 L/H 2 L/H 10 L/H 70 L/H 100 L/H 150 L/H
Average Particle Diameter of Fog 20um 28um 28um 28um 32um 39um 51um 62um
Power Consumption 0.01 Degrees/Kg 0.001 Degrees/Kg
Atomization Head Structure Cylindrical Horn
Power 30W 30 W 30 W 30 W 60 W 100 W 300 W 500 W
The Application of Atomizing Media

Ordinary water, a variety of liquid substances, chemical liquid,

a variety of oil mucus, metal melt and so on

SUMMARY OF FEATURES OF ULTRASONIC ATOMIZER

· From micro-litres to litres – continuous or intermittent

· Dispenses material with virtually no over spray

· Pressure-less atomization – low velocity mist

· Low cost atomization probe replacement

· Minimal atmospheric contamination

· Virtually unclog gable

· Programmable operation

· Multiple probe operation

· No heating / No temperature rise



TYPICAL APPLICATIONS

· Increase of humidity level

· Coating non-woven fabric, paper, etc…

· Laboratory spray drying

· Injection moisture into a gas stream

· Applying minute amount of oil, fragrance or flavour onto a product

· Injecting small volume of reagents into a reactor

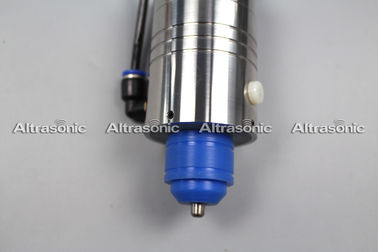

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying

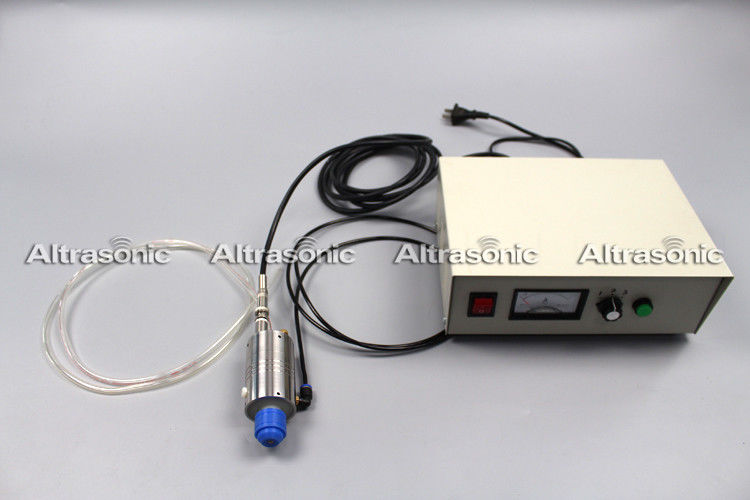

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying 0

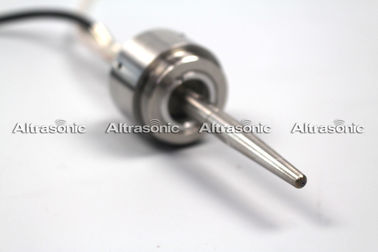

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying 1

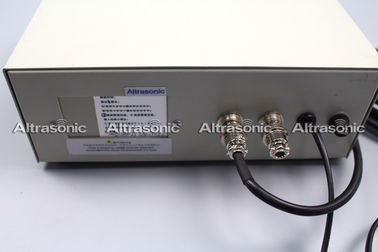

50Khz Ultrasonic spray nozzle supplier titanium horn for spray drying 2
