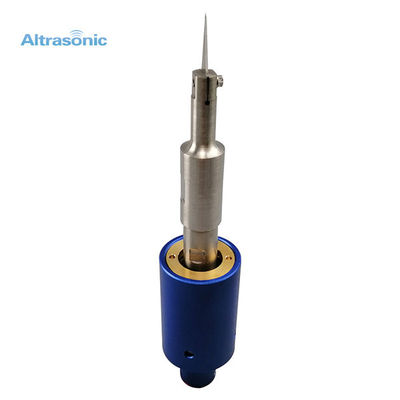

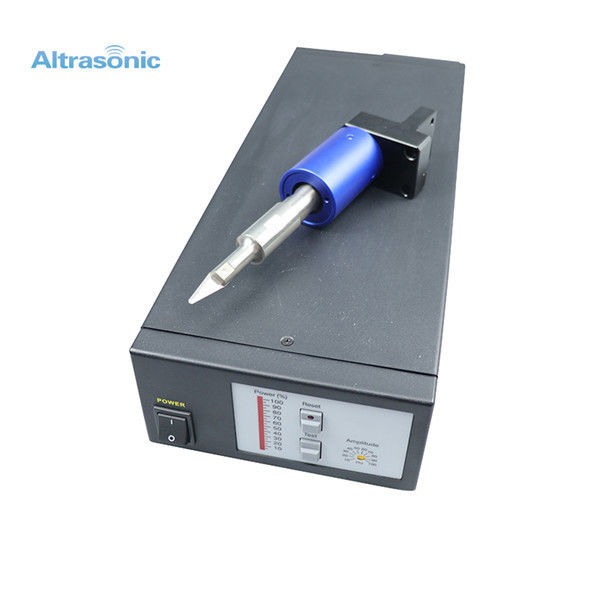

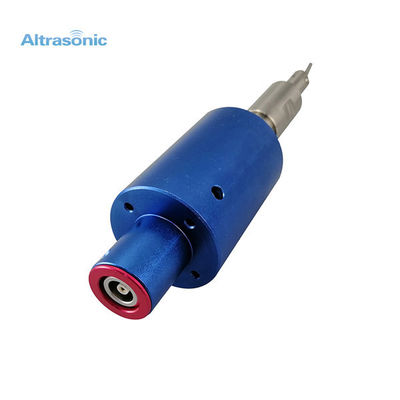

Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion

Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion
Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion

Large Image :  Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-C30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month

Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion

Description
Frequency: 30Khz Power: 500W
Blade: Replaceable Material Of The Blade: Titanium
Application: Cutting Generator: Digital
Cooling Method: Air Cooling Certification: CE Certificate
Cutting Thickness: 1-7mm Voltage: 220V/110V
High Light:

ultrasonic cutting knife

,

ultrasonic cutting equipment


30kHz 500W Ultrasonic Customized Cutter with Air Inlet and Outlet for Manual Opeartion

Specification:

Model
HS-C30
Frequency
30KHZ
Output Power
200W
Generator
Digital generator, 452 x 180 x 100mm
Handle
Φ44×220
Size of cutter
Blade replaceable
Length of cable
3M
Outer skin
Aluminum
Weight
8KG
Voltage
220V / 110V
Accessory
Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade
titanium alloy, stainless steel


Description:

Ultrasonic cutting principle is through the ultrasonic generator to 50 / 60Hz current into 20,30 or 40kHz power. The converted high frequency electric energy is again converted into mechanical vibrations at the same frequency by the transducer, and then the mechanical vibration is transmitted to the cutter by means of a set of amplitude modulator devices which can change the amplitude. The cutting tool transmits the received vibration energy to the cutting surface of the workpiece to be cut in which the vibration energy is cut by means of activating the molecular energy of the material to be cut and opening the molecular chain.

Ultrasonic cutting knife maximum output power of 300W, for cutting difficult to cut the material, you can use 1mm thick wear-resistant carbide blade, and the user can replace the blade, increase the life of the cutting tool less cost. Ultrasonic cutting is the use of ultrasonic energy, will be cutting the material of local heating melting, to achieve the purpose of cutting materials, without sharp edge.
This section of the cutting knife with a 1mm thick alloy knife head, sharp head so that the cutting contact surface becomes smaller, reducing the heat of the head, sharp blade with ultrasonic cutting effect is more ideal.
30K ultrasonic cutting knife can be used for hand-held cutting and automatic mechanical clamping.


Application:

  • Natural fibers
  • Synthetic fiber
  • Thin plastic products(Such as plastic film, cell phone case)
  • All types of paper, bottom film
  • Rubber, silicone
  • Repair of printed circuit board copper foil
  • ABS,PP,PE … other organic plastic sheet less than 2mm
  • Various types of synthetic fabrics


Advantages:

1. Cutting precision is high, rubber is not deformed;
2. Cutting surface finish is good, good bonding performance;
3. Easy to use in automated production;
4. Fast, high efficiency, no pollution;





Product display:



Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion 0Customized 30khz 500W Ultrasonic Cutter with Air Inlet and Outlet Manual Opeartion 1
