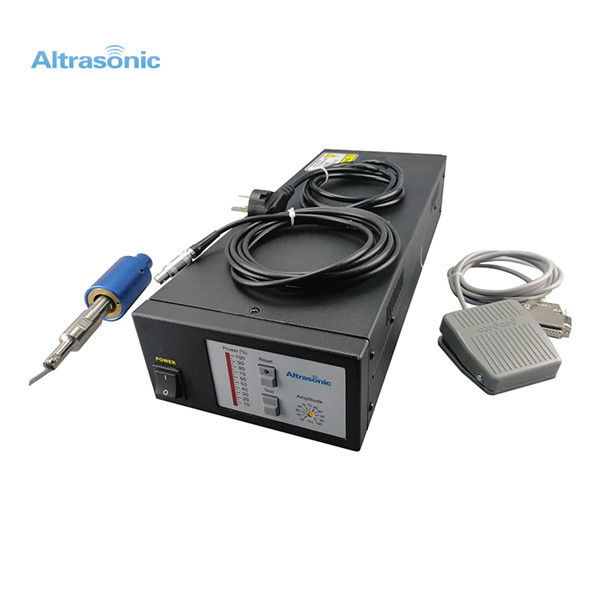

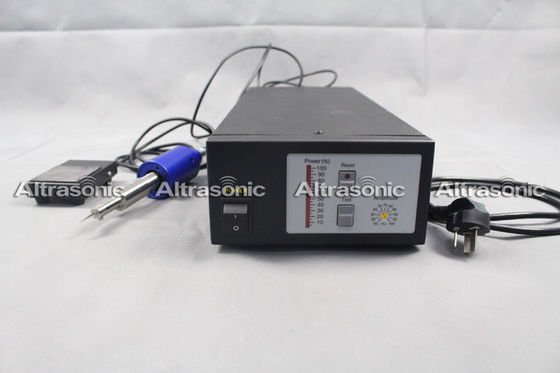

30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets

China 30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets supplier
30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets supplier 30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets supplier 30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets supplier 30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets supplier

Large Image :  30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets

Product Details:

Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HSPC30

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Carton packing
Delivery Time: 7 workdays afer receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Frequency: 30Khz Power: 200W
Blade: Replaceable Material Of The Blade: Titanium
Application: Cutting Generator: Digital

30khz ultrasonic Cutter with Titainum Blade for PVC Neylon Sheets Cutting​







Description:



Ultrasonic Cutting Machine is a class of device using ultrasonic energy for cutting. Instead of using traditional blade cutting, ultrasonic cutting has its advantages of smooth, reliable cutting, accurate trimming, no deformation, no raising, fuzzing, spinning, wrinkling etc. It can avoid the rough cutting-edge, coked edge, fuzzballs and other shortcomings of laser cutting machine.

Ultrasonic cutting machine is used for cutting rubber, synthetic fabric, cloth, plastic, sheet metal, food etc.

The cutting of food products using ultrasound is performed when an ultrasonic blade comes into contact with the product to be cut, the high vibration of 40,000 pulses per second, makes this product very easily be cut even if it is of delicate or sticky texture composition. The much higher vibration does not allow any product to stick to the blade. The cut is clean and without pressure on the product.







Specification:



Model HSPC30
Frequency 30KHZ
Output Power 200W

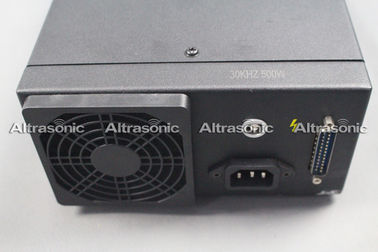

Generator Digital generator, 452 x 180 x 100mm
Handle Φ44×220
Size of cutter Blade replaceable
Length of cable 3M
Outer skin Aluminum
Weight 8KG
Voltage 220V / 110V

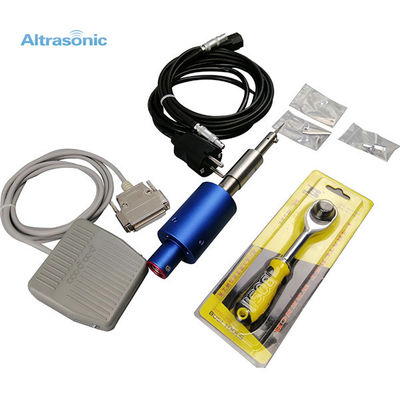

Accessory Foot switch 1pc;Cut blade 2pcs;
1.5mm special hex wrench 1pc;Screw M3×4L 2pcs
Material of blade titanium alloy, stainless steel







Ultrasonic Cutters can cut difficult-to-cut materials



l Natural fibers

l Synthetic fiber

l Thin plastic products(Such as plastic film, cell phone case)

l All types of paper, bottom film

l Rubber, silicone

l Repair of printed circuit board copper foil

l ABS,PP,PE … other organic plastic sheet less than 2mm

l Various types of synthetic fabricsPlastic sheet







Compared to conventional methods, ultrasonic cutting delivers:



l Improved cut quality for carpets, headliners and plastics

l Lower initial investment and operating costs

l Reduced floor space requirements

l A greener footprint with less noise and waste







The following table presents the company tests for different material thickness, the recommended cutting speed data.



Cutting Material Thickness Cutting speed
ABS/PE 2mm 4mm/s
3mm 2mm/s
4mm 1mm/s
PVC 2mm 15mm/s
Asian gram force 2mm 3mm/s
Non-woven fabric 3mm 2mm/s
Chloroprene rubber 5mm Easy to cut
Corrugated paper 8mm Easy to cut
Plywood 2.5mm Easy to cut
Glass fiber resin 1.5mm Easy to cut
Thick cardboard 1.5mm Easy to cut
Linen 2mm Easy to cut
Urethane 3mm Easy to cut
Nylon/PP 3mm Easy to cut







What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.







30khz ultrasonic Cutter with Titainum Blade for PVC Neylon Sheets Cutting​

30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets30khz Ultrasonic Cutting Machine with Titainum Blade for PVC Neylon Sheets
