Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover

Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover
Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover

Large Image :  Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: negotiation
Packaging Details: Packed in carton
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 1000 units per month

Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover

Description
Product Name: Ultrasonic Converter Frequency: 20Khz
Ceramic Diameter: 50 Mm Capacitance: 11-17nf
Power: 2000w Application: Plastic Welding Machine
Ceramic Disc: 4pcs Material: Material: Titanium, Aluminum Materials Optional
Protective Out: Aluminum And Stainless Steel Optional Voltage: 220V/110V
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers



Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover



Specifications:

Model
HS-D41S30
Frequency
20 khz
Output power
1000 watt - 3000 watt
Joint bolt
1/2-UNF
Ceramic disc Diameter
50 mm
Quantity of Ceramic discs
4 pcs
Capacitance
11000 pf
Amplitude
20 um
Application
welding machine


Description:

The 20Khz high power Ultrasonic Welding Transducer , replacement converter for Dukane 41S30​ is applied to Dukane type ultrasonic welding machine.


Replacement Item:


Item No
Connect Screw (Size)
Ceramic diameter
(mm)
Qty of ceramic
(PC)
Frequency(khz)
Resistance(Ω)
Color of ceramic
Capacitance
Input Power
(W)
Branson CJ20
1/2-20UNF
50
6
19.90
10
Yellow
20000
3300
Branson 502
1/2-20UNF
50
6
19.90
10
Yellow
20000
3300
Branson 402
M8*1.25
25
4
39.60
10
Yellow
4200
800
Branson 4TH
M8*1.25
25
4
39.90
10
Yellow
4200
800
Branson 902
1/2-20UNF
40
4
19.85
10
Yellow
8000
1100
Branson 922J
1/2-20UNF
50
6
19.90
10
Yellow
20000
2200
Dukane 40K
M8*1.25
35
2
39.80
5
Gray
3000
800
Dukane 20K
1/2-20UNF
50
2
19.50
10
Yellow
11000
2000
Dukane 110-3122
1/2-20UNF
50
4
19.50
10
Yellow
11000
2000
Dukane 110-3168
1/2-20UNF
45
2
19.50
10
Yellow
4000
800
Rinco 35K
M8*1.25
25
2
34.80
50
Yellow
2000
900
Rinco 20K
M16*2
50
2
19.90
50
Yellow
5000
3000
Telsonic 35K
M8*1.25
25
4
35.00
5
Yellow
4000
1200
Telsonic 20K
1/2-20UNF
50
4
20.00
3
Yellow
10000
2500


Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.


Competitive Advantages:

1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.


What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.



Product display:

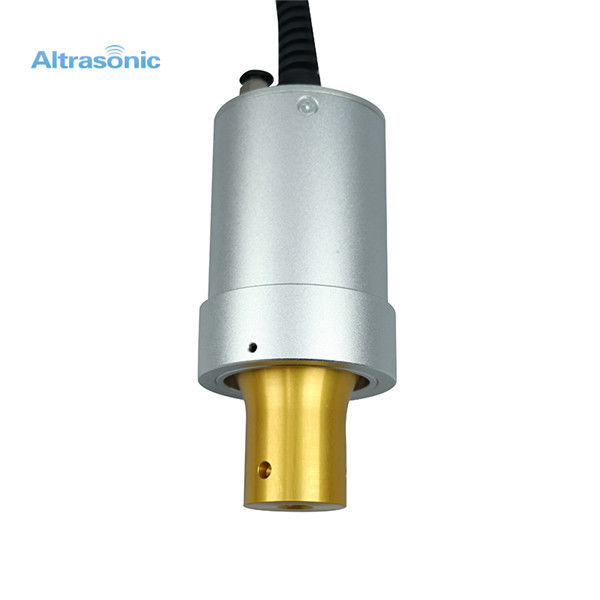

Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover 0
Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover 1Replacement Dukane 41S30 Golden Valve Body Stainless Steel Outer Cover 2
